The Viking non-contact profilometer for affordable laser measuring

Solarius Development introduces a new low-cost non-contact laser profilometer, Viking. The tool is designed to meet mid range accuracy needs using state of the art sensor technology to generate 3 dimensional surface maps. In designing the Viking Solarius has maintained the precision and workmanship found in its high accuracy LaserScan profilometer. Incorporating many of the same design methodology has guaranteed system integrity.

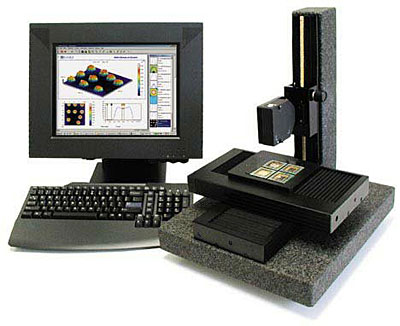

Viking is a desktop general laser measuring tool consisting of an X/Y 100mm moving axis platform mounted below a laser sensor to provide fast non-contact profiling of a vast variety of engineering surfaces and electronic components.

The productivity benefits of the Viking laser profilometer lay in its easy to learn data acquisition procedures. New operators spend less time learning to use the system and more time measuring components. Once a measuring sequence is performed and saved, the same measuring sequence and analysis can be re-called at any point in the future.

The Viking non-contact profilometer is designed for off-line QC applications. The small footprint in combination with a robust design makes it ideal for both production floor and QC lab environments.

Standard components

• Sensor system
• High precision x,y stages
• MS Windows^® 2000

Options

• Camera: Allows for simultaneous viewing of the surface that is been measured. This is a useful option for locating specific features to be measured.
• 3D Analysis Software: This option allows you to extend the analysis capability with full 3D functionality.

Applications include

• Thick Film
• Tribology
• Engineering Surfaces

For more information on the Viking non-contact profilometer please download our data sheet.
[pdf, 172 KB]
