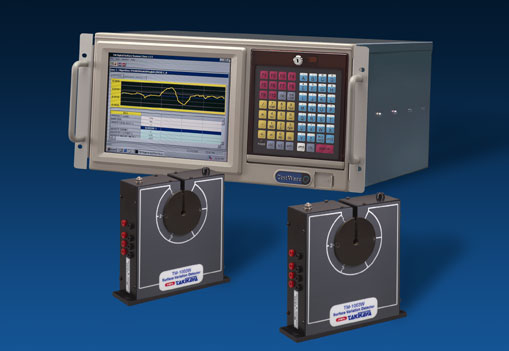

Takikawa's TM Series Surface Variation Detectors were designed to provide users with a reliable continuous high speed method to detect surface variations in optical fibers, enamel, electric and vinyl wires, communication and power cables, metal and glass rods, pipes and hose. Takikawa manufactures 16 different variation detectors to suit your individual application needs.

Fine wire/cable | Middle Diameter wire/cable | Large Diameter wire/cable/pipe | Extra Large Diameter wire/cable/pipe



Application: Fine wire/cable

Model TM-1100XY TM-1003W TM-1104W
No. Axis 2 3 4
Diameter Range 0.0007" ~ 0.315"
Detection Sensitivity 0.0004" ~ 0.040"
Slit Length 0.708" 0.472" 0.708"
Line Speed 3 ft / min ~ 5,000 ft / min
Recorder Output +/- 1V / 0.004" +/- 0.5V / 0.004" +/- 1V / 0.004"
Alarm Output off delay 0.5 sec off delay 0.05 sec off delay 0.5 sec
Relay Rating AC250V 2A
Ambient Temperature 32 degrees F ~ 120 degrees F
Power 115 V AC 50/60 Hz
Weight 2.5 kg 1 kg 5 kg
Light Source Infrared LED 720 nm 100,000 hrs life expectancy


Application: Middle Diameter wire/cable


Model TM-3001W TM-3002W TM-3004W TM-3008W TM-3016W
No. Axis 1 2 4 8 16
Diameter Range 0.004" ~ 1.5"
Detection Sensitivity 0.002" ~ 0.400"
Slit Length 1.9"
Line Speed 3 ft / min ~ 5,000 ft / min
Recorder Output +/-100 Mv / 0.004"
Alarm Output off delay 0.5 sec
Relay Rating AC250V 2A
Ambient Temperature 32 degrees F ~ 120 degrees F
Power 115 V AC 50/60 Hz
Weight 1.5 kg 3 kg 6 kg 12 kg 24 kg
Light Source Infrared LED 720 nm 100,000 hrs life expectancy


Application: Large Diameter wire/cable/pipe

Model TM-4001W TM-4002W TM-4004W TM-4008W TM-4016W
No. Axis 1 2 4 8 16
Diameter Range 0.004" ~ 2.36"
Detection Sensitivity 0.006" ~ 0.395"
Slit Length 2.75"
Line Speed 3 ft / min ~ 3,280 ft / min
Recorder Output +/-100 Mv / 0.004"
Alarm Output off delay 0.5 sec
Relay Rating AC250V 2A
Ambient Temperature 32 degrees F ~ 120 degrees F
Power 115 V AC 50/60 Hz
Weight 7 kg 25 kg 38 kg 76 kg 152 kg
Light Source Infrared LED 720 nm 100,000 hrs life expectancy


Application: Extra Large Diameter wire/cable/pipe

Model TM-6004W TM-6008W TM-7003W TM-7009W
No. Axis 4 8 3 9
Diameter Range 0.040" ~ 3.15" 0.040" ~ 5.2"
Detection Sensitivity 0.008" ~ 0.395"
Slit Length 3.54" 5.5"
Line Speed 1 ft / min ~ 1,600 ft / min
Recorder Output +/-100 Mv / 0.004"
Alarm Output off delay 0.5 sec
Relay Rating AC250V 2A
Ambient Temperature 32 degrees F ~ 120 degrees F
Power 115 V AC 50/60 Hz
Weight 38 kg 76 kg 40 kg 120 kg
Light Source Infrared LED 720 nm 100,000 hrs life expectancy
