Processor:

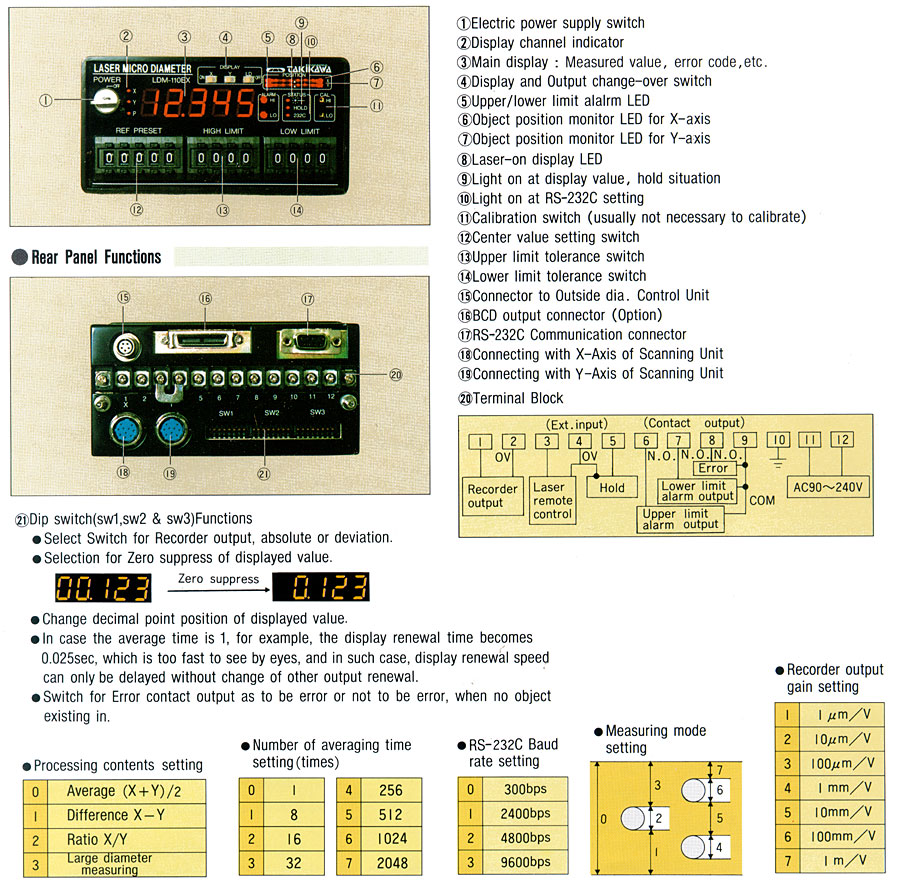

LDM-110EX
|
|
Display |
Max. No. of Scanning Heads |
2 |
|
Display Type |
7 Segment LED |
|
Display Range |
-99.999 to 999.99 |
|
Position Indicator |
7 Level LED Bargraph |
|
Deviation Indicator |
no |
|
Time Plot Display |
no |
|
Hexagraph Divergent Display |
no |
|
Tolerance Check Output Display |
LED Annunciators |
|
Inputs/Outputs |
Trigger Input |
yes |
|
Timing Input |
yes |
|
Analog Voltage Output |
+/- 10 VDC |
|
Alarm Outputs |
2 amp Relay (x2) |
|
Error Output |
yes |
|
Interface
Port |
RS-232C |
Measurement Data output and
Configuration
Control Input |
|
IEEE-488 |
optional |
|
BCD |
optional |
|
General |
Power Supply |
90-240 VAC 50 / 60 Hz |
|
Ambient Temperature |
0 to 45 degrees C |
|
Relative Humidity |
35 to 85% RH (non-condensing) |
|
